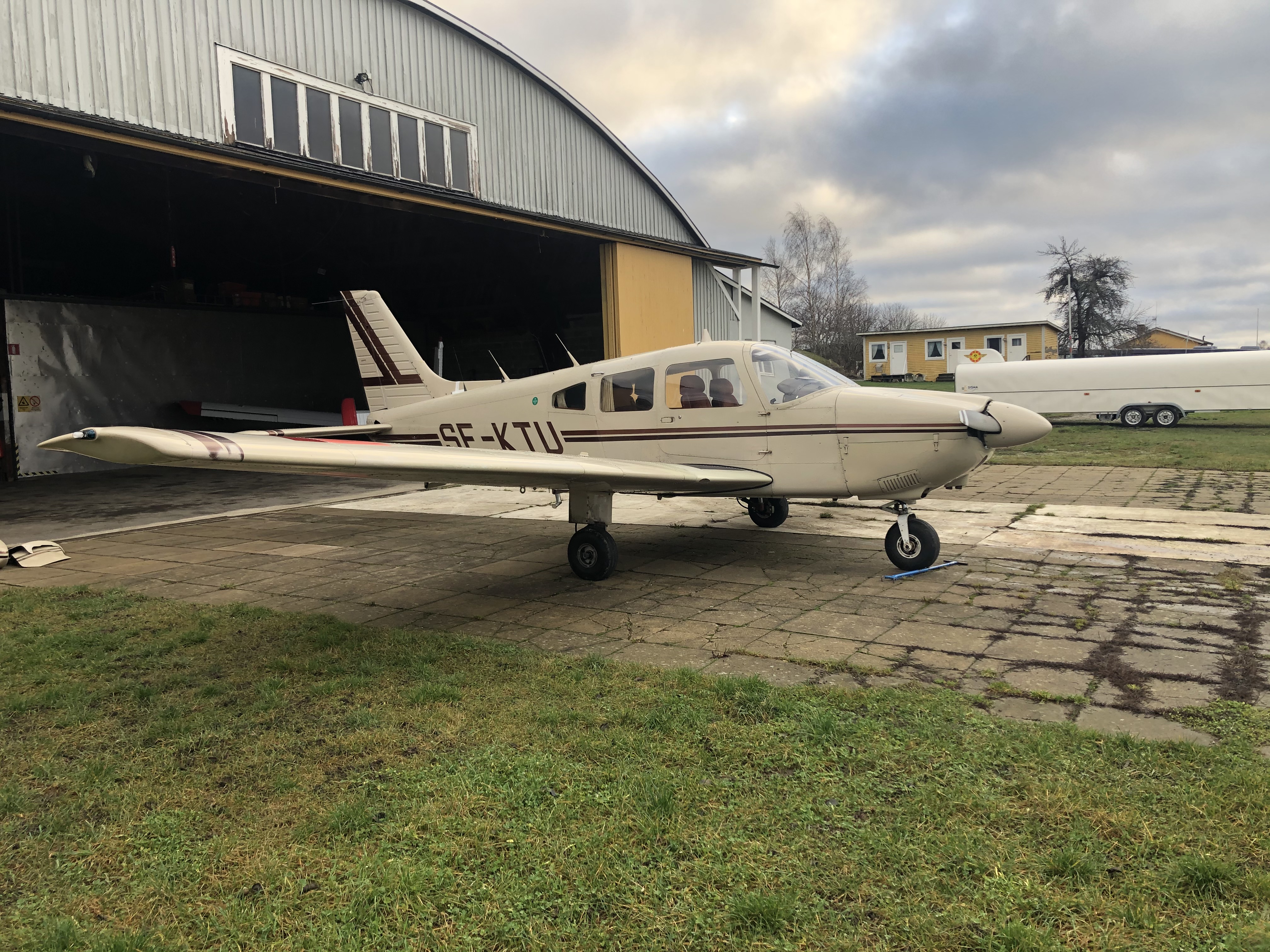

AIRFRAME: Piper PA 28-181 Archer II 1981, Low Wing, 4 Seat Cabin, Exterior and Interior (original) condition rated as 5 of 10, Hangered. It’s a relative old aircraft with lots of hours, but in all over good looking. Former registration N84698. 4 owners in Sweden since imported by Andersson Aircraft 1991-08-28. One damage major accident in 1994 with long landing, nose wheel damage. The aircraft is well-maintained and under CAMO with required AD’s and SB’s complied at last 100 hrs inspection June 2020. The technical documentation is of a high standard which facilitates registration in another country. All technical documentation, is written in Swedish/English language.
Serial No: 288290066
C of A: ARC valid to May 7th, 2021
TOTAL TIME: 12 250 hrs since new
ENGINE: 180 hp Lycoming O-360-A4M, S/N: L-32807-36E, with 2 770 hrs since overhaul April 9th 2010. On Condition.
PROPELLER: 2-blade Sensenich 76EM8S5-0-62, S/N: 102687K with 2 000 hrs since overhaule
AUTOPILOT: Centry 21 with Nav-coupler

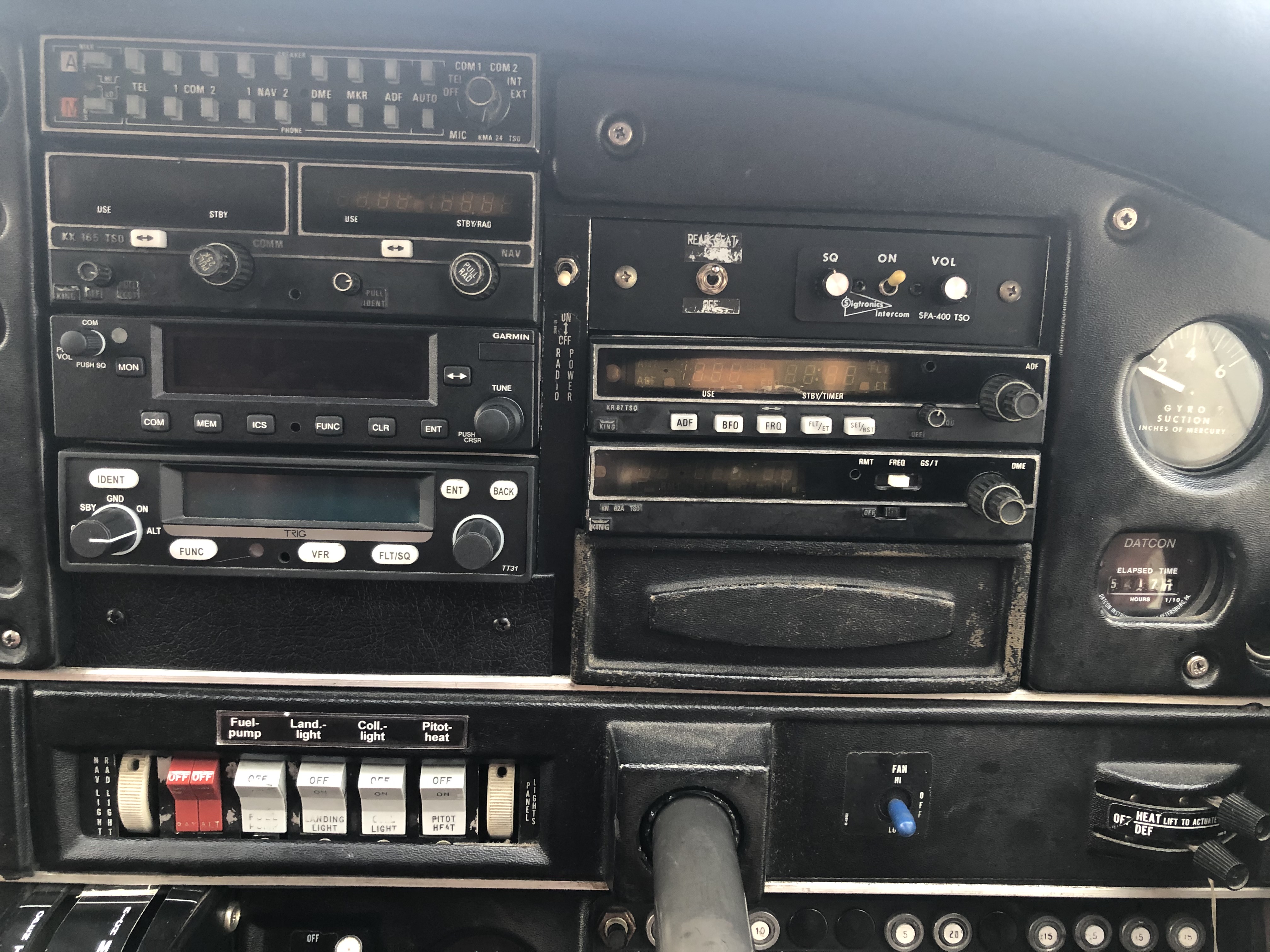

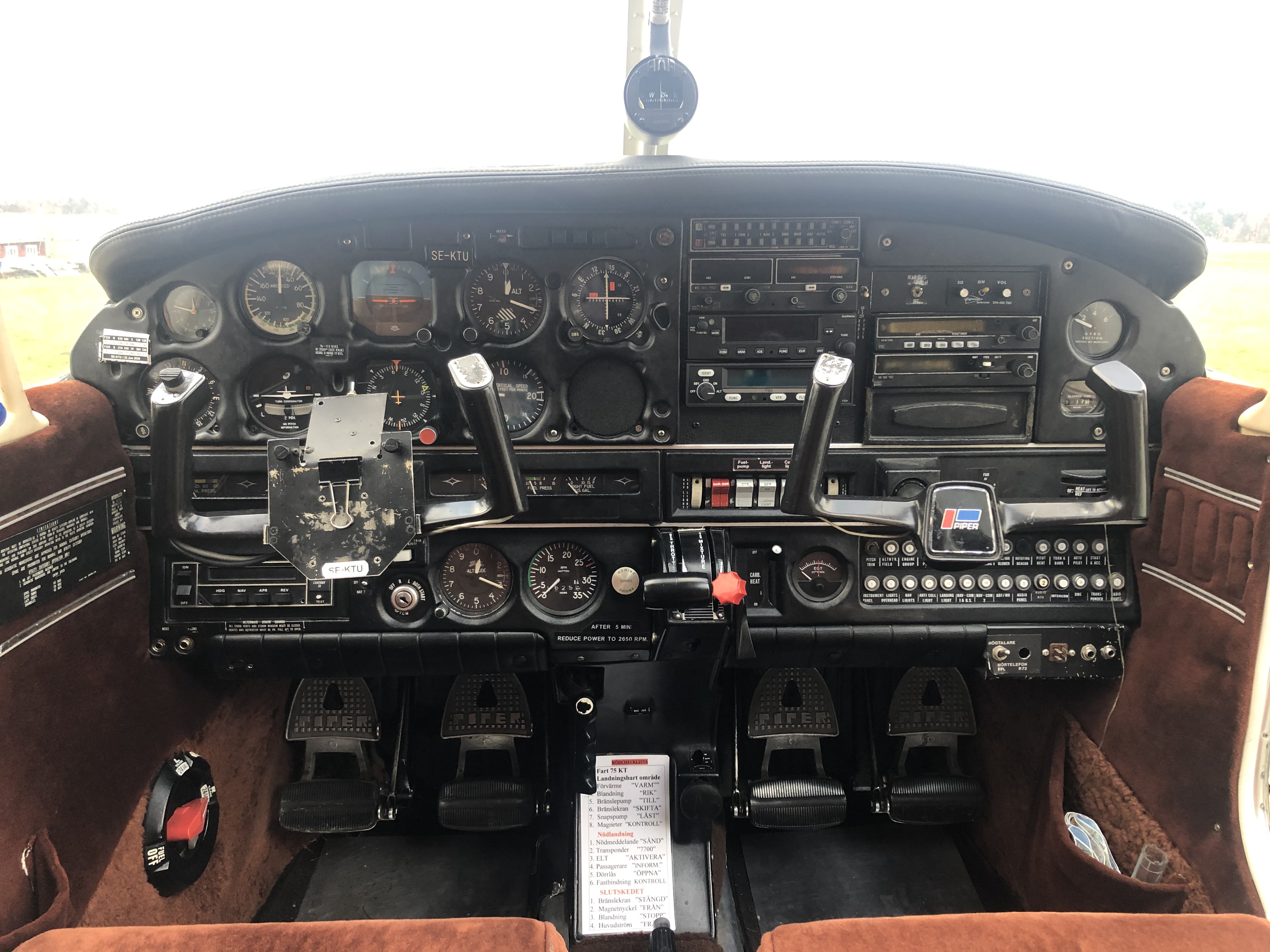

AVIONICS and INSTRUMENT:
Gyropanel with dual Altimeters
King KMA 24 AudiopanelGarmin
GNC255 Radio 8,33
COM/NAV King KX 165 COM/NAV
TRIG TT31 Transponder – Mode S ELT Narco
ADDITIONAL EQUIPMENT:
Pitot System – Heated Static System
Wheel Fairings, on main wheel (nose wheel is missing)
External power plug
4 Place Intercom
Tow Bar
Fire Extinguisher
First Aid Kit
WEIGHTS:
MTOW 1 157 kg
Empty Weight 745 kg
Useful Load 410 kg (281 kg with full fuel tanks)
FUEL TANKS: Total fuel 181 litres
